Drain pump Drain Major 60 - RTS60SL - Carriage & VAT Included

Drain Major RTS60SL has been designed to pump waste water from a combination oven, dish/ glass washer. commercial sink/basin or any situation where waste water needs to be collected and pumped to the drainage system.

Pump:

• Safe to run dry

• 10 mm free passage with EIP technology

• Cooling jacket for motor housing

• SiC mechanical seal independent of sense rotation

• Replaceable moisture sealed cabinet inlet

• Flushing Device

• Fluid temperature 35°C, temporarily 60°C (10 mins)

This pump works up to two Rational floor standing ovens SCC/CM 201/202

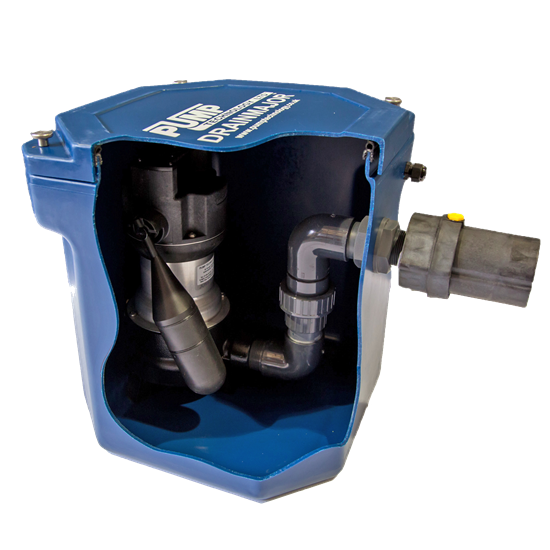

Tank:
Manufactured from recyclable polyethylene and fully rigged with internal pipe work and non-return valve. The lid is held in place with easy-to-remove hand screws and sits on a custom moulded, fitted rubber seal.

Tank Inlets:
To suit site layout, all inverts should be brought into the side of the tank by drilling a hole and using an appropriate tank connector. Minimum invert height 120 mm.

Tank Outlet:
Fitted 1½” BSP male thread discharge outlet (NRV supplied female thread)

Tank Venting:
To suit site layout, a vent should be taken from the side of the tank by drilling a hole and using an appropriate tank connector. Vent pipe should be 1¼” min. to air or via a Pump Technology MicroVent.

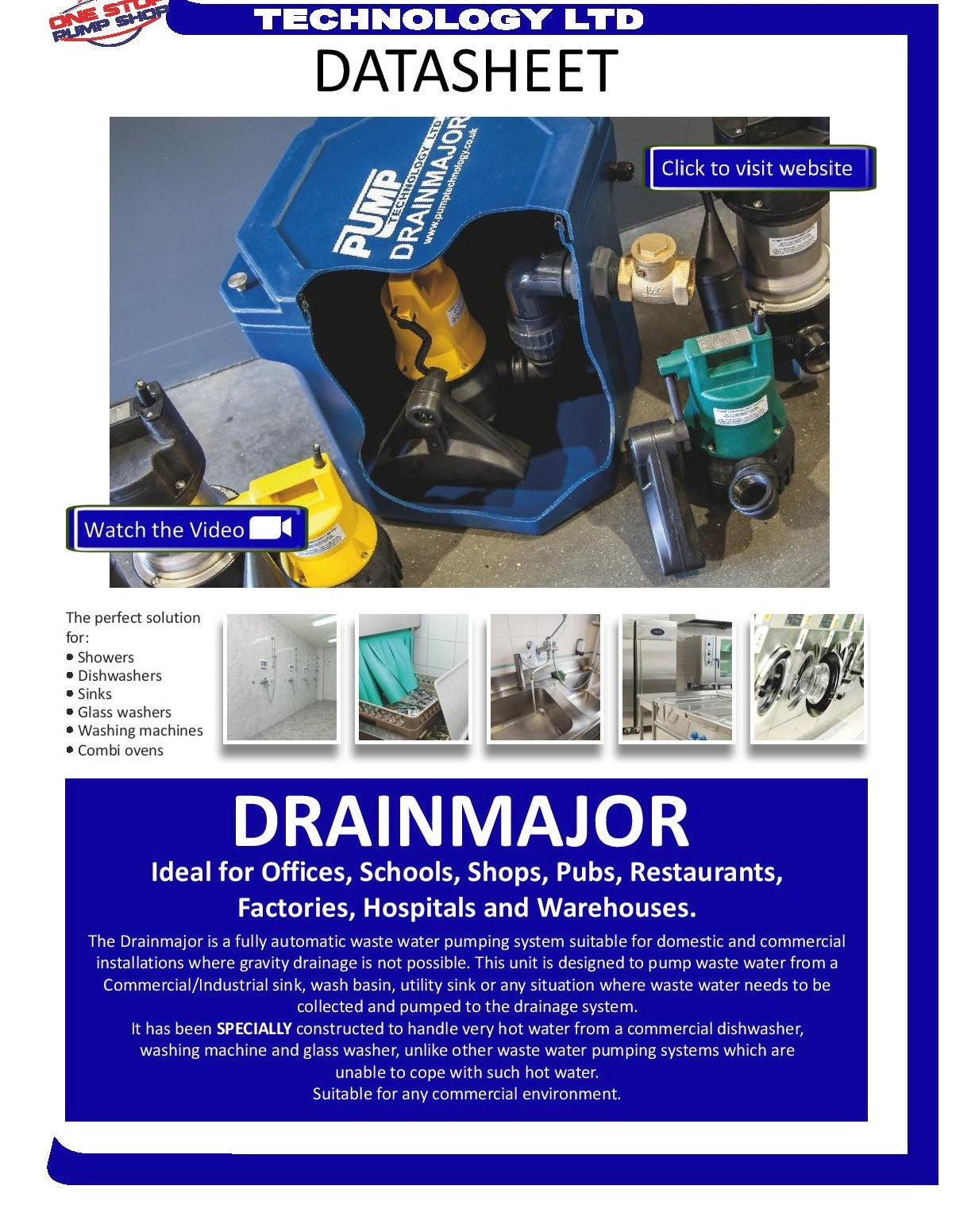

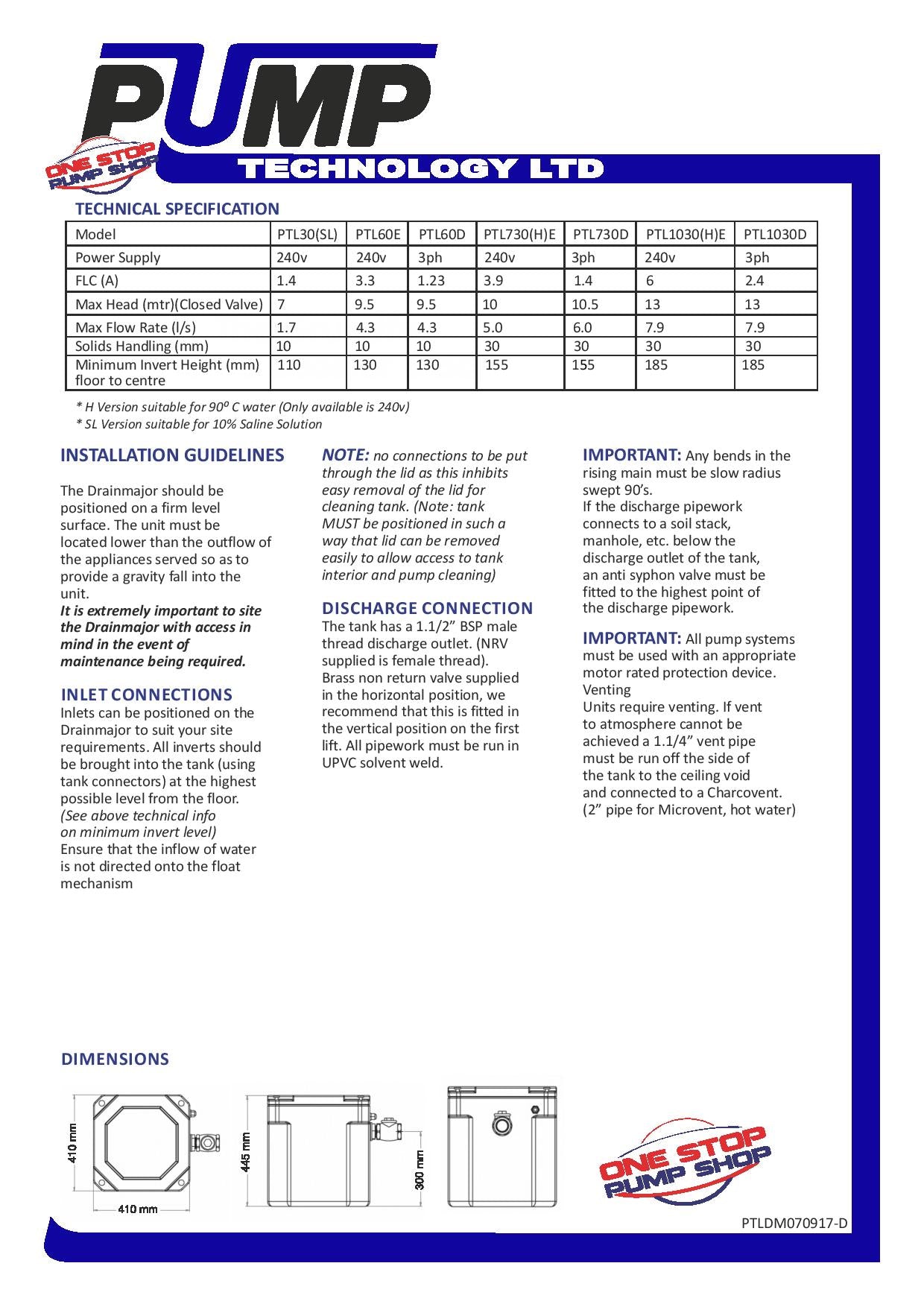

Please refer to the manufacturer data sheet for further information here.
